Anti-Static (ESD) Carrier Tape
ESD-protected embossed carrier tape developed for electrostatic-sensitive components, helping reduce handling risks during packaging, transportation, and automated placement.
Carrier Tape Manufacturer & Supplier for SMT Packaging
Jiushuo manufactures embossed, anti-static and custom carrier tape for electronic components, with in-house pocket design, tooling, sampling and production support.

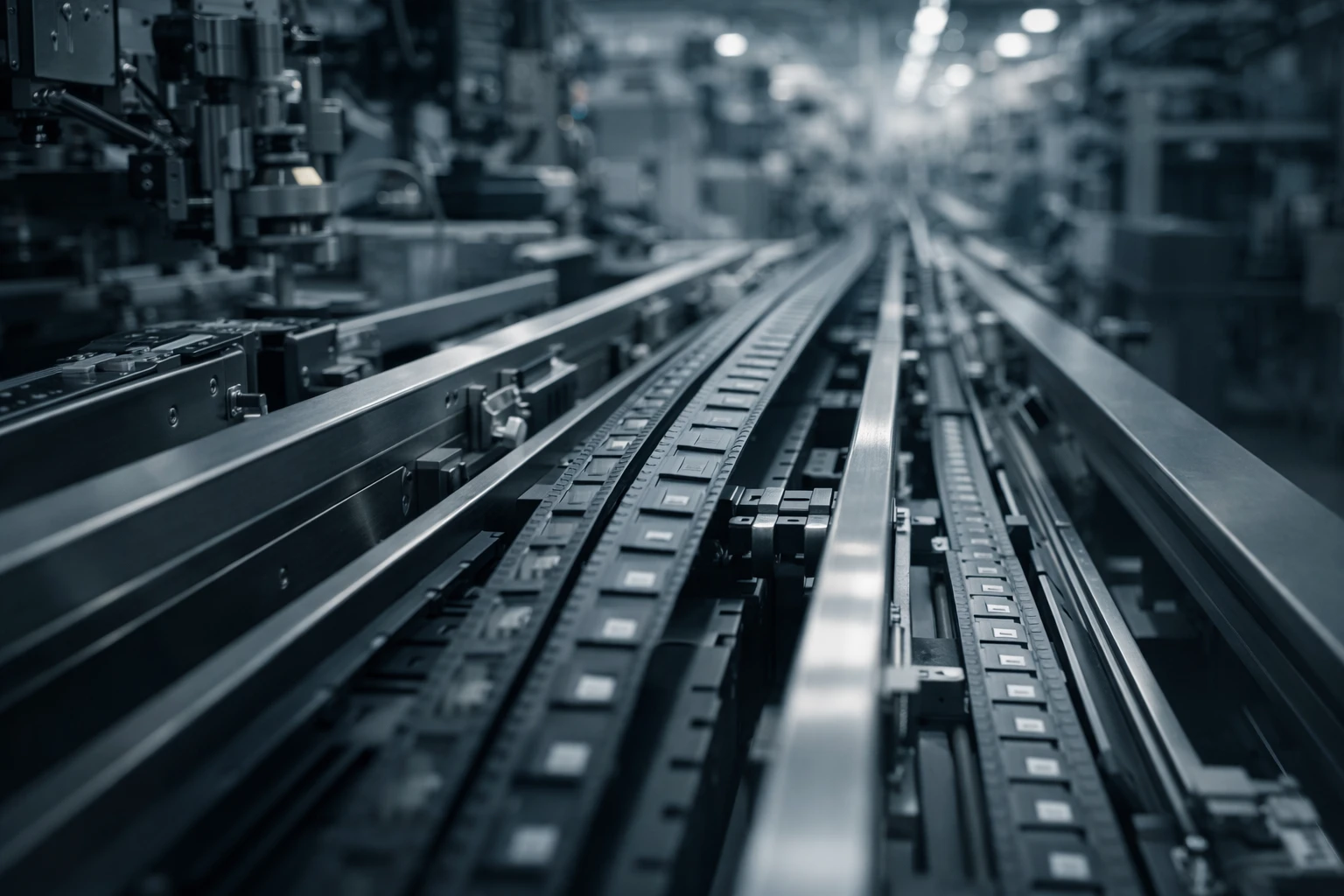

Jiushuo is a carrier tape manufacturer and supplier serving electronics manufacturers, component makers and packaging partners. We produce standard and custom solutions for stable component protection, sealing and automated SMT feeding.
Choose embossed carrier tape, anti-static carrier tape or a custom pocket design based on component geometry, ESD requirements and the packaging process. Our team can review drawings or physical samples before tooling and sample approval.
Carrier Tape Products
Compare our three core carrier tape options, then send your component drawing for specification review.
View DetailCustom Embossed Carrier Tape
View DetailCustom-designed carrier tape solutions for components that cannot be accommodated by standard pocket structures, tape widths, or geometries.

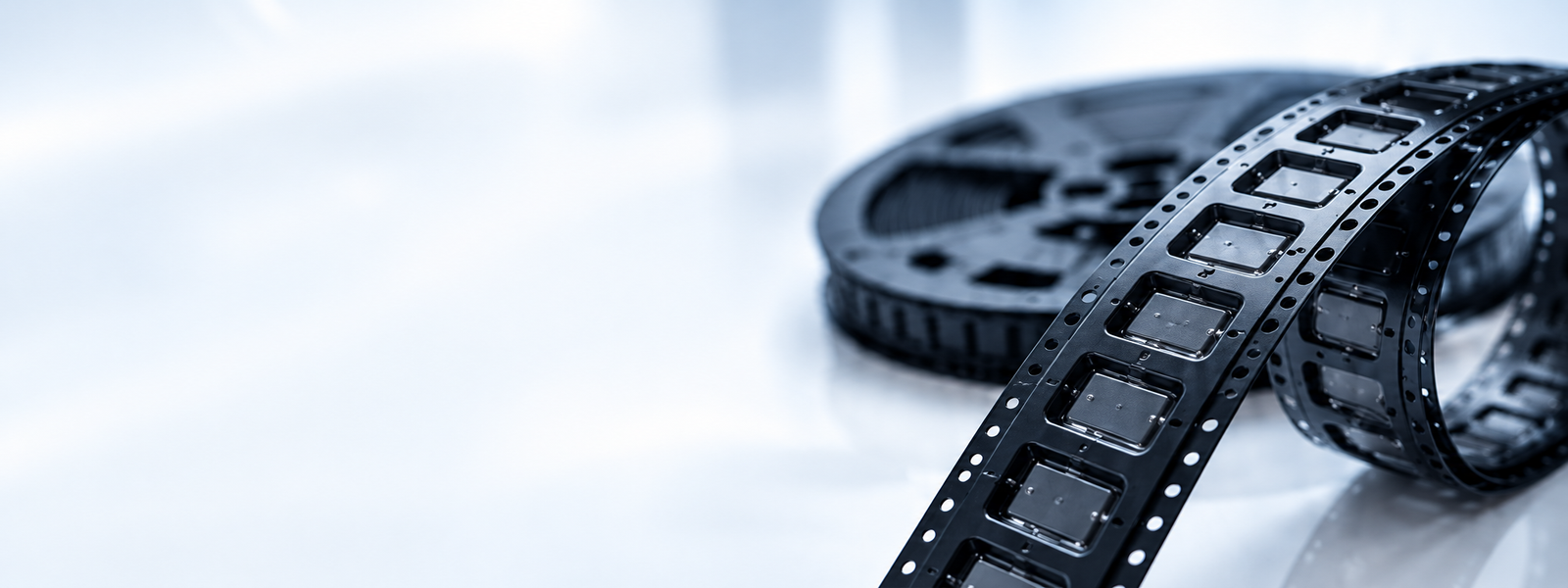

Embossed Carrier Tape
View DetailStandard embossed carrier tape designed for automated SMT packaging, supporting a wide range of electronic components and tape widths. Suitable for most surface-mount applications while allowing flexible pocket design and material selection.
Carrier Tape Specifications We Support
Core options for standard and custom carrier tape. Final dimensions are confirmed from your component drawing, sample and packaging requirements.
Tape Width
8, 12, 16, 24, 32, 44, 56, 72, 88, 104 and 120 mm
Material
PS, PET, APET, PC and ABS
Pocket
Standard, custom, deep and special-shape pocket designs
Pitch
Selected to match component length, orientation and indexing requirements
Depth
Engineered from component height, retention and clearance needs
ESD Options
Conductive, anti-static and static dissipative material options
Typical Components and Application Scenarios
Our embossed carrier tape solutions are designed to accommodate a wide range of electronic and precision components, supporting stable handling and accurate feeding across different SMT applications.
Semiconductor & Passive Components
Embossed carrier tape is widely used for packaging semiconductor and passive devices that require precise pocket geometry and consistent feeding accuracy.
This includes ICs, resistors, inductors, capacitors, diodes, transistors, and oscillators, where pocket tolerance and component orientation directly affect pick-and-place reliability.
Interconnection & Protection Components
For components such as connectors, terminals, fuses, and relays, carrier tape design focuses on mechanical stability and retention strength.
Proper pocket depth and support structures help prevent movement, deformation, or misalignment during transportation and automated placement.
Precision Mechanical & Metal Parts
Jiushuo also supports embossed carrier tape solutions for stamped metal parts, precision spring contacts, and other precision mechanical components.
These parts often require customized pocket shapes to accommodate irregular geometries and maintain consistent positioning throughout the feeding process.
Functional Modules & Special SMD Parts
For communication modules and SMD motors, standard carrier tape designs are often insufficient.
Custom embossed carrier tape solutions are used to address challenges related to component height, weight, and structural complexity, ensuring stable handling from packaging to final assembly.
Carrier Tape Design, Tooling & Quality Control
Custom Design & Tooling

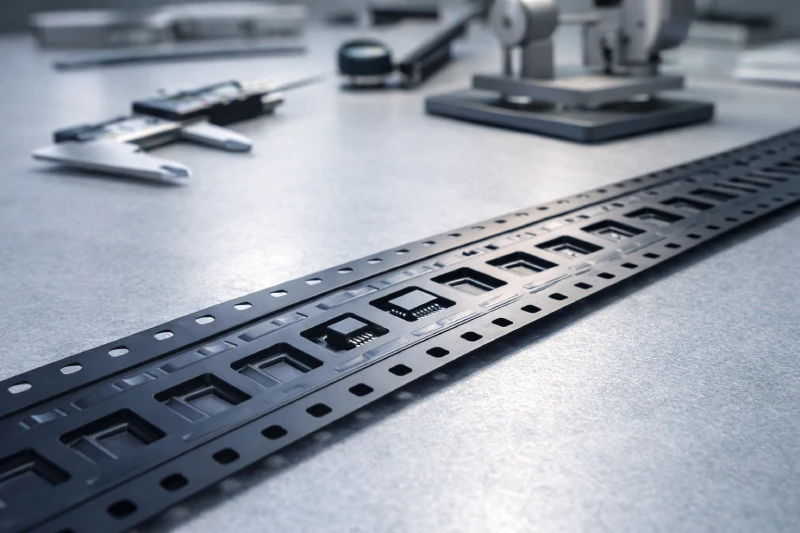

Jiushuo develops carrier tape pockets from component drawings, datasheets or physical samples. The review covers component orientation, tape width, pocket geometry, pitch, depth, material and ESD requirements.
For non-standard parts, we prepare the pocket design and tooling for sample production. Component fit, cover tape matching and feeding behavior are checked before the approved design moves to production.
Manufacturing & Quality Control

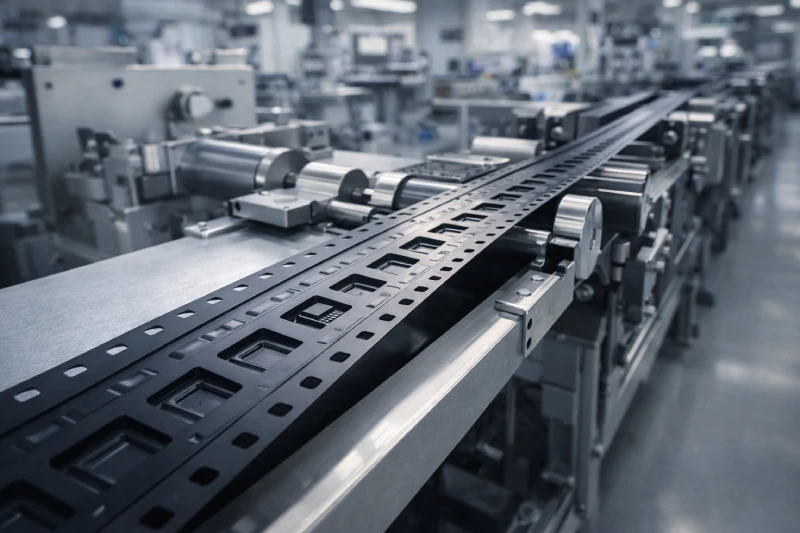

Carrier tape is formed under controlled process settings using PS, PET, APET, PC or ABS materials selected for the application.
Before forming, we confirm material type, thickness, color and ESD requirements. During and after production, the team checks pocket forming, key tape and pocket dimensions, component fit, feeding stability and the approved sample reference.
Jiushuo carrier tape is produced to the confirmed drawing and aligned with EIA-481-D packaging requirements. RoHS documentation is reviewed against the specified material and product scope.
Carrier Tape Procurement Process
A clear five-step path from component information to approved production.
Drawing
Send the component drawing, datasheet, sample photo or physical sample.
Evaluation
We review component geometry, orientation, ESD needs, tape width, material and packaging method.
Sample
Pocket design and tooling are used to prepare sample tape for fit and packaging checks.
Approval
You confirm component fit, sealing match and feeding performance against the approved sample.
Production
Production follows the confirmed drawing and sample, with dimensional, forming and roll inspection.
Complete Tape & Reel Packaging System
In tape-and-reel packaging, carrier tape functions as part of a complete system rather than a standalone component.
To ensure stable sealing, transportation, and automated feeding performance, embossed carrier tape is typically used together with compatible cover tape and plastic reels.
Cover Tape
Cover tape is applied to seal components securely within the carrier tape pockets. Different sealing methods and anti-static options are available to match carrier tape materials, pocket structures, and SMT production requirements.
Plastic Reels
Plastic reels support the carrier tape during winding, handling, storage, and transportation. Standard and anti-static reel options are designed to maintain tape alignment and protect packaged components throughout the supply chain.
Carrier Tape Technical Resources
Use these guides to prepare specifications and compare design, material and standards requirements before requesting a quote.
EIA-481 Standards Guide
Understand carrier tape and reel dimensions, indexing and packaging requirements.
View guide →Carrier Tape Design Guide
Review pocket geometry, orientation, pitch, depth and design inputs.
View guide →Carrier Tape Material Guide
Compare PS, PET, APET, PC and ABS options for packaging applications.
View guide →
Carrier Tape Purchasing FAQ
Answers to common sourcing questions about specifications, customization, sampling and packaging compatibility.
Please send a component drawing or datasheet, sample photo or physical sample, expected packaging method, quantity for evaluation, and any ESD requirement. This lets us review tape width, material and pocket design.
Yes. Pocket size, shape, pitch and depth can be developed from the component drawing or sample. The design is confirmed through tooling and sample review before production.
Jiushuo supports tape widths from 8 to 120 mm, including 8, 12, 16, 24, 32, 44, 56, 72, 88, 104 and 120 mm. Material options include PS, PET, APET, PC and ABS.
A standard pocket may suit common components with compatible dimensions. Irregular, tall, fragile, asymmetric or movement-sensitive parts normally require a custom pocket evaluation.
Yes. Sample tape can be prepared for component fit, sealing match and feeding checks. Production follows the confirmed drawing and approved sample.
Yes. Jiushuo can review carrier tape, cover tape and plastic reel compatibility as one tape and reel packaging system, including ESD needs and EIA-481-D alignment.
