PCB assembly plastic reels are an essential part of modern SMT manufacturing. They work together with carrier tape and cover tape to package electronic components in a format that can be loaded directly into automated pick-and-place machines.
Although the reel may seem like a simple packaging part, it directly affects feeding stability, production speed, component protection, and overall assembly cost. A reel that is too small, too weak, or incompatible with the SMT feeder can lead to tape jams, component loss, machine downtime, and unnecessary scrap.
For PCB assembly companies, EMS providers, and electronics manufacturers, choosing the correct plastic reel is just as important as choosing the right carrier tape.
What Is a PCB Assembly Plastic Reel?
A PCB assembly plastic reel is the circular spool used to wind carrier tape after electronic components have been loaded and sealed. The complete tape-and-reel packaging system includes three parts:
- Carrier tape that holds the components
- Cover tape that seals the pockets
- Plastic reel that stores and feeds the tape
Once the components are loaded into the carrier tape pockets, the cover tape is applied, and the finished tape is wound onto the reel. The reel is then mounted onto an SMT feeder, allowing components to feed automatically into the pick-and-place machine.
Plastic reels are widely used in industries such as:
- PCB assembly
- Semiconductor packaging
- Automotive electronics
- LED manufacturing
- Consumer electronics
- Industrial control systems
Compared with loose packaging, tubes, or trays, plastic reels offer much better efficiency for automated production. They keep the tape organized, protect delicate components during transportation, and reduce handling time on the assembly line.
For companies using custom tape-and-reel processes, the reel must also match the dimensions of the carrier tape and the feeder system. This is why many manufacturers use complete Tape & Reel Packaging Solutions rather than sourcing each packaging component separately.
How Plastic Reels Work in SMT Production
The function of a PCB assembly plastic reel is simple: it keeps the component tape aligned and feeds smoothly into the machine. However, the reel plays a major role in maintaining stable SMT production.
A typical workflow looks like this:
- Components are loaded into embossed carrier tape pockets.
- Cover tape is applied to seal the components.
- The finished tape is wound onto a plastic reel.
- The reel is installed on an SMT feeder.
- The pick-and-place machine pulls the tape forward and places each component onto the PCB.
If the reel dimensions are incorrect, the tape may not feed consistently. A poorly designed reel can cause:
- Reel wobble during rotation
- Tape slipping on the hub
- Incorrect tape tension
- Broken carrier tape pockets
- Machine stoppages and operator intervention
This is especially important in high-speed assembly lines where thousands of components are placed every hour. Even a small feeding problem can create major downtime.
High-quality reels help maintain proper tape tension and reduce the risk of the tape tangling or jumping inside the feeder. When paired with precision Carrier Tape, the result is smoother production and lower defect rates.

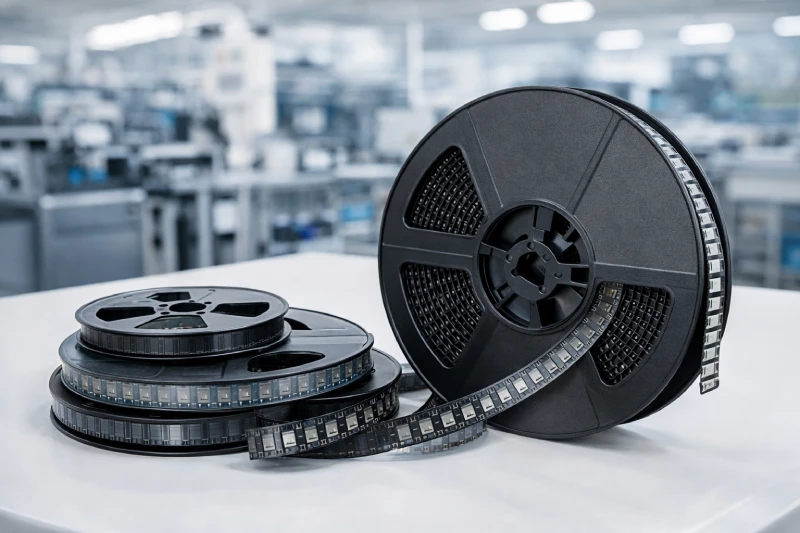

Standard PCB Assembly Plastic Reel Sizes
The most common plastic reel sizes used in PCB assembly are 7-inch and 13-inch reels. The correct size depends on the width of the carrier tape, the quantity of components required, and the type of SMT feeder being used.
| Reel Size | Typical Tape Width | Typical Components | Best Use |
|---|---|---|---|
| 7-inch reel | 8 mm, 12 mm | Resistors, capacitors, small ICs | Prototype runs, small batches |
| 13-inch reel | 8 mm–56 mm | ICs, connectors, larger components | High-volume SMT production |
| Custom reel | 24 mm–72 mm+ | Large connectors, automotive parts | Custom packaging applications |
7-Inch Plastic Reels
A 7-inch reel is commonly used for low-volume production, prototypes, and small SMT jobs. Because it holds less carrier tape, it requires more frequent reel changes during production. However, it is compact and cost-effective for smaller batches.
Typical uses include:
- Small passive components
- Narrow 8 mm carrier tape
- Sample runs and engineering builds
13-Inch Plastic Reels
A 13-inch reel is the standard choice for mass production. It can hold significantly more carrier tape, reducing the number of reel changes on the SMT line.
For high-volume PCB assembly, 13-inch reels improve efficiency because operators do not need to reload feeders as often. They are commonly used for:
- Large SMT production runs
- Wider tape sizes
- Larger ICs and connectors
- Automated assembly lines running 24/7
Reel Width and Hub Specifications
In addition to reel diameter, manufacturers must also match:
- Tape width: 8 mm, 12 mm, 16 mm, 24 mm, 32 mm, 44 mm, 56 mm
- Hub diameter
- Arbor hole size
- Flange thickness
These dimensions must comply with ANSI/EIA-481 standards to ensure compatibility with SMT feeders. If the reel width is too narrow or too wide, the carrier tape may shift during feeding.
For applications using deeper or wider pockets, manufacturers often combine the reel with custom Embossed Carrier Tape to ensure the entire package remains stable.
Why ESD Protection Matters for Plastic Reels
Many electronic components used in PCB assembly are sensitive to electrostatic discharge. A standard plastic reel may generate static electricity during handling, transport, or feeder rotation. This can damage semiconductors long before the assembly process begins.
To prevent this, many manufacturers use antistatic or conductive plastic reels.
The three most common material types are:
- Standard plastic reel: no ESD protection
- Antistatic plastic reel: reduces static buildup
- Conductive plastic reel: dissipates charge safely
ESD-safe reels are especially important for:
- ICs and microchips
- MOSFETs
- Sensors
- Automotive electronic parts
- Semiconductor devices
- Communication modules
Most ESD reels are black because they use conductive carbon-loaded materials. They also typically have a surface resistance within the range required for ESD-safe packaging.
If your components already require antistatic carrier tape, the reel should provide the same level of protection. Otherwise, the overall packaging system may still expose the components to static damage.
For sensitive parts, it is best to pair conductive reels with Anti-Static (ESD) Carrier Tape so the entire package remains ESD-safe from production through shipment.
How to Choose the Right PCB Assembly Plastic Reel
The correct reel depends on more than just diameter. To avoid feeding issues and packaging failures, you should evaluate the complete SMT application.
1. Match the Reel to the Component Size
Small passive components usually work well with narrow tape and smaller reels. Larger parts such as connectors, relays, or automotive components may require:
- Wider carrier tape
- Larger reel flanges
- Stronger reel material
Heavy components can deform weak reels during transport. In these cases, a reinforced reel design is often required.
2. Match the Reel to the Carrier Tape Width
The reel width must match the tape width exactly. If the reel is too wide, the tape may shift from side to side. If it is too narrow, the tape may bind against the flange.
Before ordering, confirm:
- Tape width
- Reel width
- Flange depth
- Hub diameter
When using unusual pocket depths or large components, manufacturers often require a custom reel together with Custom Embossed Carrier Tape.
3. Confirm SMT Feeder Compatibility
Different feeder brands have different requirements. Panasonic, Fuji, Yamaha, Siemens, and Juki feeders may use different arbor hole sizes or flange thicknesses.
Always confirm that the reel is compatible with:
- The feeder spindle size
- The reel mounting method
- Tape advancement system
- Required tape orientation
4. Consider the Type of Cover Tape
The reel, carrier tape, and cover tape must work together as a complete system. If the cover tape seal is too weak, components may fall out during shipping. If it is too strong, the feeder may struggle to peel it away.
For high-speed production, many PCB assembly companies use either Pressure Sensitive Cover Tape or heat-sealed cover tape depending on the component type and packaging requirements.
Checklist Before Ordering Plastic Reels
Before sending an RFQ, prepare the following information:
- Reel diameter
- Reel width
- Tape width
- Hub size
- Arbor hole size
- ESD requirement
- Component type
- Feeder brand
- Required quantity per reel
Providing these details helps the supplier recommend the correct reel more quickly and accurately.
Common Plastic Reel Problems and How to Prevent Them
Even small packaging issues can create serious problems during PCB assembly. The most common failures are usually caused by low-quality materials or incorrect dimensions.
| Problem | Likely Cause | Recommended Solution |
|---|---|---|
| Reel cracks during transport | Weak plastic or excessive stacking pressure | Use stronger material and better carton support |
| Tape jams in feeder | Incorrect reel width or flange size | Match reel dimensions to feeder specifications |
| Components fall out of tape | Poor cover tape seal | Improve sealing process and tape compatibility |
| Reel wobbles during feeding | Poor arbor hole accuracy | Use precision-molded reel hub |
| Static damage to components | Standard reel used for sensitive parts | Switch to antistatic or conductive reel |
One of the most common mistakes is assuming that any plastic reel will work with any carrier tape. In reality, the reel must be designed for the exact tape width and feeder system.
Low-cost reels may reduce packaging cost initially, but they often create more expensive problems later in production.
Why Better Plastic Reels Improve PCB Assembly Efficiency
A high-quality plastic reel does more than simply hold the tape. It helps improve the overall efficiency of the SMT process.
Better reels provide:
- More stable feeding
- Less machine downtime
- Fewer rejected components
- Lower labor cost
- Better protection during shipping
- Faster line changeovers
For high-volume PCB assembly, reducing even a few feeder stoppages per day can create major savings over time. Reliable reels also reduce the need for operators to monitor the line constantly.
Because of this, many electronics manufacturers treat the plastic reel as a production-critical part rather than a low-cost packaging accessory.
Choosing a Reliable Plastic Reel Supplier
The best plastic reel supplier should offer more than standard reel sizes. They should also understand SMT packaging, feeder compatibility, and ESD requirements.
A reliable supplier should be able to provide:
- Standard 7-inch and 13-inch reels
- Custom reel dimensions
- ANSI/EIA-481 compliant designs
- Antistatic and conductive materials
- Matching carrier tape and cover tape
- Compatibility testing with your feeder system
Before requesting a quotation, ask the supplier:
- Which reel sizes are available?
- Can you support custom reel widths?
- Do you offer ESD-safe materials?
- Can you test the reel with our SMT feeder?
- Can you supply the complete tape-and-reel package?
Working with one supplier for the reel, carrier tape, and cover tape usually reduces risk and simplifies quality control.
Conclusion
The right PCB assembly plastic reel protects components, improves feeding stability, and helps maintain efficient SMT production. Reel diameter, width, ESD protection, and feeder compatibility should always be considered together.
For simple applications, a standard 7-inch or 13-inch reel may be sufficient. For larger components, unusual tape widths, or sensitive semiconductors, a custom reel often delivers better long-term performance.
If you are planning a new tape-and-reel project, the safest approach is to work with a supplier that can recommend the correct reel, carrier tape, and cover tape as a complete solution.
