Modern SMT and semiconductor manufacturing rely heavily on efficient packaging systems to protect delicate electronic components during transportation and automated assembly. Among the most important solutions in this process is the embossed carrier tape reel machine.
As electronic components continue becoming smaller, lighter, and more sensitive, manufacturers need packaging systems that can maintain precision, improve productivity, and reduce handling defects. This is where embossed carrier tape reel packaging plays a critical role.
From IC chips and LEDs to precision SMD components, automated tape & reel packaging has become the industry standard for high-speed SMT production lines. A well-designed embossed carrier tape reel machine not only improves packaging efficiency but also ensures compatibility with automated pick-and-place equipment.
In this guide, we’ll explain how embossed carrier tape reel machines work, their key advantages, major machine types, common packaging challenges, and how to choose the right system for your production requirements.
What Is an Embossed Carrier Tape Reel Machine?
An embossed carrier tape reel machine is an automated packaging system used to load electronic components into embossed carrier tape pockets, seal the tape with cover film, and wind the finished product onto reels for SMT assembly use.
The embossed carrier tape itself is typically made from PS, PC, or PET materials. The tape contains precisely formed pockets that securely hold components in place during transportation and feeding.

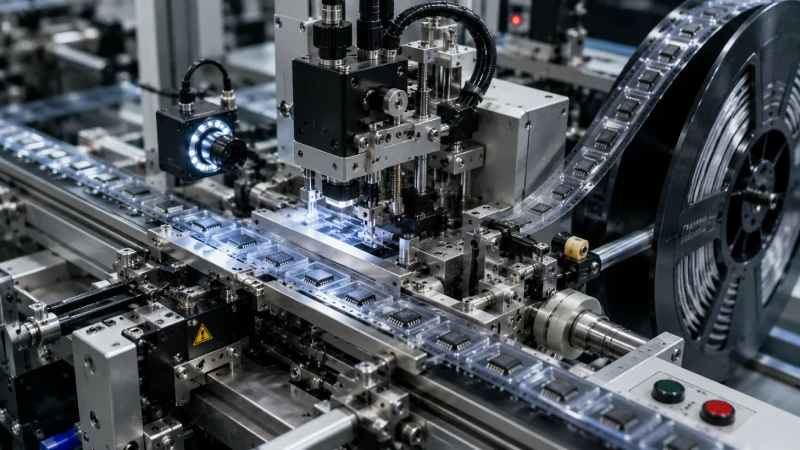

The complete packaging workflow usually includes:
- Component feeding
- Pocket positioning
- Vision inspection
- Carrier tape indexing
- Cover tape sealing
- Reel winding
- Counting and labeling
This packaging format is widely used because it supports fully automated SMT pick-and-place processes while protecting components from flipping, static damage, and contamination.
For manufacturers building automated SMT packaging lines, a complete range of Tape & Reel Packaging Machines for Carrier Tape Assembly can significantly improve production efficiency and packaging consistency.
Why Embossed Carrier Tape Packaging Is Critical for SMT Production
In modern electronics manufacturing, packaging quality directly impacts assembly yield and production stability.
Without reliable carrier tape packaging, components can easily become damaged, misaligned, or unusable during automated assembly.
Better Protection for Sensitive Components
Embossed pockets are specifically designed to fit component dimensions accurately. This prevents movement during shipping and reel feeding.
Proper embossed carrier tape packaging helps protect components from:
- Physical damage
- Lead deformation
- Static discharge
- Moisture contamination
- Orientation shifting
This becomes especially important for miniature ICs, LEDs, connectors, and precision semiconductor devices.
Compatibility With High-Speed SMT Machines
Automated SMT lines require consistent component spacing and orientation.
Embossed carrier tape reel packaging ensures that components can be smoothly fed into high-speed pick-and-place machines without interruptions.
Benefits include:
- Faster assembly speeds
- Reduced feeder jams
- Lower machine downtime
- More stable placement accuracy
Reduced Labor and Higher Consistency
Manual component packaging often leads to inconsistencies in sealing quality, reel tension, and positioning.
Automated embossed carrier tape reel machines help manufacturers achieve:
- Stable packaging quality
- Continuous production
- Reduced operator dependency
- Lower defect rates
Main Components of an Embossed Carrier Tape Reel Machine
A modern embossed carrier tape reel machine consists of multiple integrated systems working together to maintain packaging precision.
Feeding System
The feeding unit supplies components into the carrier tape pockets.
Depending on the application, machines may use:
- Vibratory bowl feeders
- Tray feeders
- Tube feeders
- Bulk feeding systems
The feeding method depends largely on component size, shape, and orientation requirements.
Tape Indexing and Positioning System
Servo-driven indexing systems ensure accurate tape movement and pocket alignment.
Advanced systems include:
- Optical sensors
- Pocket detection cameras
- Precision servo motors
These technologies improve positioning accuracy and reduce packaging errors.
Cover Tape Sealing Unit
After components are loaded, cover tape sealing secures them inside the embossed pockets.
Different sealing technologies are available based on product requirements.
For applications requiring reliable adhesive sealing performance, the Micro-Adhesive Carrier Tape Packaging Machine for Tape Sealing offers stable and consistent sealing results for sensitive electronic components.
Reel Winding and Reel Handling
Once sealed, the tape is wound onto reels under controlled tension.
Stable reel winding is extremely important because poor tension can cause:
- Tape deformation
- Feeding instability
- Pocket misalignment
For higher-volume automation, manufacturers often integrate automatic reel handling systems such as the Plastic Reel Changing Machine for Tape & Reel Packaging, which reduces downtime during reel replacement.
Vision Inspection System
Modern SMT packaging increasingly relies on machine vision inspection.
Vision systems can detect:
- Missing components
- Incorrect orientation
- Polarity errors
- Dimensional deviations
For manufacturers requiring additional inspection capability, the Semi-Automatic Visual Inspection Carrier Tape Packaging Machine provides enhanced quality verification during packaging operations.
Embossed Carrier Tape Production vs Tape & Reel Packaging
Many manufacturers confuse carrier tape production with carrier tape packaging, but they are actually separate processes.
Carrier Tape Production
Carrier tape production focuses on creating the embossed tape itself.
This process includes:
- Heating plastic film
- Embossing pockets
- Pocket forming
- Hole punching
- Tape cutting
Manufacturers producing custom embossed carrier tape often use dedicated forming equipment such as the Carrier Tape Production Machine for Embossed Tape Forming.
Tape & Reel Packaging
Tape & reel packaging occurs after the embossed carrier tape has already been manufactured.
This process involves:
- Loading components
- Sealing cover tape
- Winding reels
- Inspection and counting
Many SMT factories operate both systems together to improve quality control and reduce outsourcing costs.
Fully Automatic vs Semi-Automatic Embossed Carrier Tape Reel Machines
Choosing the right machine configuration depends on production volume, labor availability, and budget.
Fully Automatic Systems
Fully automatic embossed carrier tape reel machines are designed for large-scale production environments.
Advantages include:
- High-speed packaging
- Continuous operation
- Minimal labor requirements
- Higher output consistency
- Reduced human error
For high-volume SMT production, the Fully Automatic Carrier Tape Packaging Machine is ideal for improving packaging efficiency and production stability.
These systems are especially suitable for:
- Semiconductor factories
- LED manufacturers
- Large EMS providers
- IC packaging companies
Semi-Automatic Systems
Semi-automatic machines provide greater flexibility for smaller production runs.
Benefits include:
- Lower initial investment
- Easier operation
- Faster product changeovers
- Better for mixed production environments
The Semi-Automatic Carrier Tape Packaging Machine is often a practical choice for manufacturers handling diverse component types or lower production volumes.
Common Problems in Embossed Carrier Tape Packaging
Even advanced packaging systems can experience issues if parameters are not properly controlled.
Component Flipping
Improper pocket sizing or excessive vibration can cause components to flip inside the carrier tape.
This may result in:
- Pick-and-place failures
- Orientation errors
- Increased SMT defects
Cover Tape Peeling Issues
Unstable sealing conditions can cause poor peel strength performance.
Common causes include:
- Incorrect sealing temperature
- Inconsistent pressure
- Poor adhesive quality
To maintain packaging reliability, many manufacturers use specialized testing equipment such as the Carrier Tape Peel Strength Tester for Packaging Validation to verify sealing consistency and peel force stability.
Pocket Misalignment
Incorrect tape indexing may lead to:
- Component positioning errors
- Feeding problems
- SMT production interruptions
Precision servo control and sensor calibration are critical for preventing these issues.
How Automation Is Changing Embossed Carrier Tape Packaging
As SMT manufacturing evolves, packaging automation is becoming increasingly intelligent.
AI Vision Inspection
Modern systems now use AI-powered vision inspection to improve detection accuracy.
These systems can identify:
- Micro defects
- Orientation inconsistencies
- Missing components
- Surface contamination
Smart Factory Integration
Many packaging systems now support:
- MES connectivity
- Barcode traceability
- Real-time production monitoring
- Data collection and analytics
This helps manufacturers improve overall production management and quality tracking.
Packaging for Smaller Components
As electronic components become smaller, packaging precision requirements continue increasing.
Packaging solutions for 01005 and ultra-miniature components demand:
- Higher positioning accuracy
- Better vibration control
- Improved sealing precision
Advanced embossed carrier tape reel machines are becoming essential for handling these next-generation packaging challenges.
How to Choose the Right Embossed Carrier Tape Reel Machine Supplier
Selecting the right equipment supplier is just as important as selecting the machine itself.
Evaluate Industry Experience
A supplier with extensive SMT packaging experience can better understand:
- Component handling challenges
- Production requirements
- Packaging standards
- Automation integration
Check Customization Capability
Different electronic components often require customized packaging solutions.
A reliable supplier should support:
- Multiple tape widths
- Custom pocket dimensions
- Various sealing methods
- Inspection integration
Consider After-Sales Support
Strong technical support helps minimize downtime and improve long-term reliability.
Look for suppliers offering:
- Remote troubleshooting
- Spare parts support
- Technical training
- Installation assistance
Conclusion
Embossed carrier tape reel machines have become a core part of modern SMT and semiconductor manufacturing.
By combining automated feeding, precise positioning, stable sealing, and reel winding, these systems help manufacturers improve packaging efficiency while reducing defects and labor dependency.
Whether you operate a high-speed SMT production line or a flexible low-volume packaging environment, choosing the right embossed carrier tape packaging solution can significantly improve product reliability and production stability.
From embossed tape forming to automated tape & reel packaging and peel strength validation, Jiushuo offers a complete range of carrier tape packaging solutions designed for modern electronic manufacturing applications.
