Semi-Automatic Visual Inspection Carrier Tape Packaging Machine – Direction & Missing Detection Control

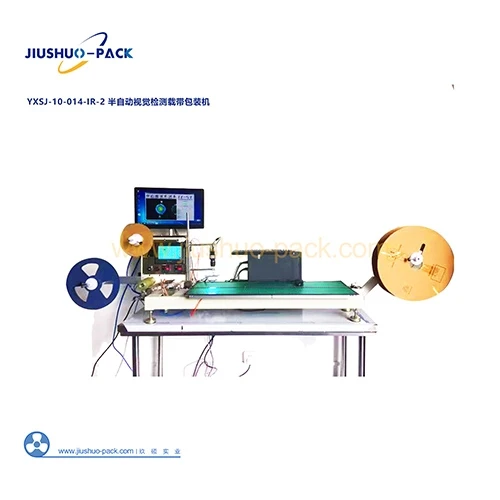

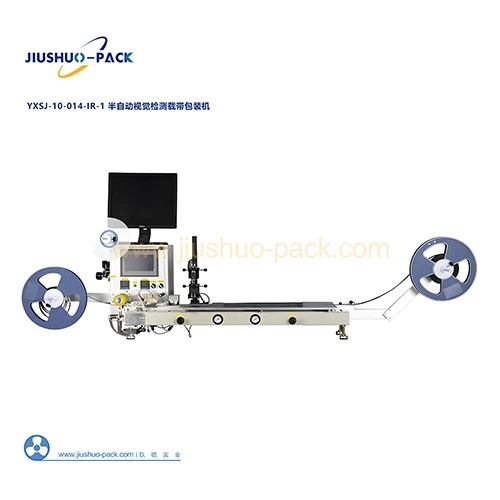

The YXSJ-10-014-IR-2 Semi-Automatic Visual Inspection Carrier Tape Packaging Machine is designed for SMT packaging applications that require manual placement combined with visual inspection control.
Featuring an intuitive human–machine interface and foot-pedal sealing operation, it supports single-operator use with freely adjustable packaging speed of 5,000–8,000 pcs/hour, depending on component handling.
The YXSJ-10-014-IR-2 Semi-Automatic Visual Inspection Carrier Tape Packaging Machine is designed for SMT packaging scenarios where manual placement is preferred but inspection control is required. A single operator manually loads components into the carrier tape, then uses the machine to seal carrier tape and cover tape together through a stable foot-pedal sealing workflow. Packaging speed is operator-controlled and typically reaches 5,000–8,000 pcs/hour, depending on component type and placement pace.
Compared with standard semi-automatic packers, this model adds visual inspection to identify product direction and missing installation. If an NG condition is detected, the system will alarm and automatically stop to prevent defective packaging from continuing. The adjustable rail system supports 8–88 mm carrier tape widths, and the machine is compatible with both cold sealing (self-adhesive) and hot pressing processes—making it a compact, flexible solution for SMD packaging lines that need manual flexibility with stronger quality control.
| Item | Specification |
|---|---|
| Model | YXSJ-10-014-IR-2 |
| Machine Type | Semi-Automatic Visual Inspection Carrier Tape Packaging Machine |
| Operation Mode | Single-operator manual placement + HMI operation |
| Packaging Process | Manually place product into carrier tape → start device switch → seal carrier tape & cover tape together |
| Packaging Speed | 5,000 – 8,000 pcs/hour (depends on manual placement speed) |
| Speed Control | Freely controlled by operator |
| Applicable Carrier Tape Width | 8 – 88 mm (conventional range) |
| Width Adjustment | Manual adjustment via machine guide rails |
| Sealing Control | Foot pedal sealing control |
| Sealing Methods | Cold sealing (self-adhesive) / Hot pressing |
| Inspection Functions | Detect product direction and missing installation |
| NG Handling | Automatic alarm and shutdown when NG is detected |
| Applicable Products | All SMD products and carrier tape packaging |
| Working Voltage | AC 220V, 50Hz |
| Power Consumption | 300 W |
| Air Pressure Requirement | Approx. 3.0 kg/cm² |
| Machine Dimensions | 1300 × 600 × 500 mm (L × W × H) |
| Machine Weight | Approx. 55 kg |
