Semi-Automatic Carrier Tape Packaging Machine – Flexible Manual-Control Packaging Solution

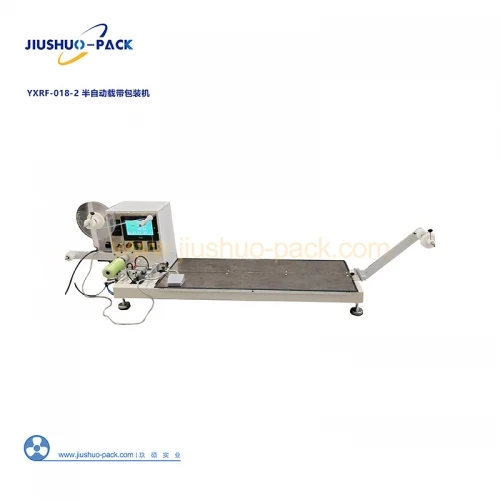

The YXRF-018-2 Semi-Automatic Carrier Tape Packaging Machine is a compact and operator-friendly solution designed for flexible SMT component packaging. Featuring an intuitive human–machine interface and foot-pedal sealing control, it allows single-person operation with adjustable packaging speed based on manual component placement.
Supporting 8–88 mm carrier tape widths and both cold sealing and hot pressing, this machine is suitable for a wide range of SMD products, offering stable operation, uniform sealing quality, and an efficient packaging rate of 5,000–8,000 pcs/hour for small to medium batch production.
The YXRF-018-2 Semi-Automatic Carrier Tape Packaging Machine is designed for flexible and cost-effective SMT component packaging, suitable for small to medium batch production. With an intuitive human–machine interface and foot-pedal controlled sealing, the machine can be operated independently by a single operator, allowing precise control over packaging speed based on manual component placement.
The machine supports carrier tape widths from 8 mm to 88 mm and is compatible with both cold sealing (self-adhesive) and hot pressing processes. Its adjustable rail system ensures quick width changeover, while stable sealing performance prevents component damage or tape slot issues. Compact, lightweight, and easy to operate, the YXRF-018-2 is ideal for SMD product packaging where flexibility and manual control are required.
| Item | Specification |
|---|---|
| Model | YXRF-018-2 |
| Machine Type | Semi-Automatic Carrier Tape Packaging Machine |
| Operation Method | Single-operator manual placement with HMI control |
| Packaging Speed | 5,000 – 8,000 pcs/hour (depending on manual placement speed) |
| Speed Control | Freely adjustable by operator |
| Applicable Carrier Tape Width | 8 – 88 mm |
| Width Adjustment | Manual adjustment via machine guide rails |
| Sealing Control | Foot pedal control for sealing operation |
| Sealing Methods | Cold sealing (self-adhesive) / Hot pressing |
| Applicable Products | All SMD components and carrier tape packaging |
| Working Voltage | AC 220V, 50Hz |
| Power Consumption | 300 W |
| Air Pressure Requirement | Approx. 3.0 kg/cm² |
| Machine Dimensions | 1300 × 600 × 500 mm (L × W × H) |
| Machine Weight | Approx. 55 kg |
