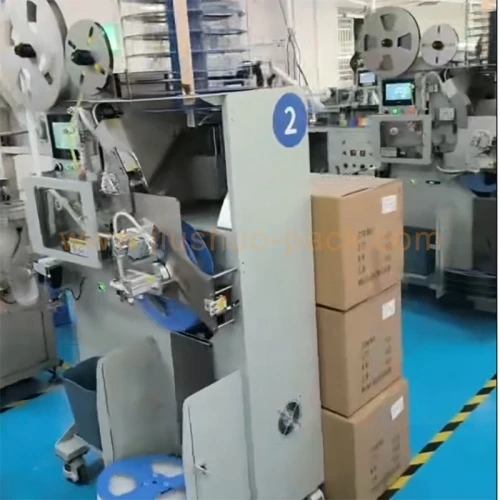

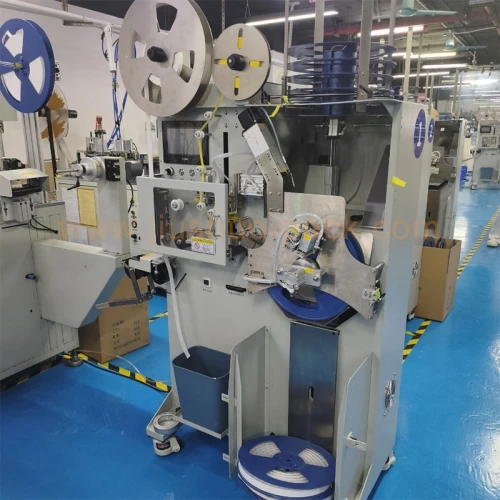

Plastic Reel Changing Machine – Automated Carrier Tape Rewinding & Reel Change Solution
The Plastic Reel Changing Machine is designed to automate the carrier tape rewinding process, integrating empty reel loading, carrier tape winding, leader tape application, isolation paper placement, tail sealing, and finished reel stacking into a single workflow Supporting multiple carrier tape widths and delivering fast reel change cycles, it improves packaging efficiency, reduces manual handling, and ensures consistent reel preparation for downstream SMT packaging and logistics operations.
The Plastic Reel Changing Machine automates the full carrier tape rewinding workflow, including empty reel loading, carrier tape winding, leader tape application, separator paper application, tail tape sealing, and finished reel stacking.
By integrating these steps into a continuous automated process, it reduces manual handling, improves consistency, and increases throughput for carrier tape preparation and downstream SMT packaging operations.
| Item | Specification |
|---|---|
| Process Functions | Empty reel loading → Carrier tape rewinding → Leader tape application → Separator paper application → Tail tape sealing → Finished reel stacking |
| Machine Dimensions | 880 × 580 × 1800 mm (L × W × H) |
| Machine Weight | < 200 kg |
| Applicable Carrier Tape Width | 16 mm / 24 mm / 32 mm / 44 mm / 56 mm |
| Working Voltage | AC 220V |
| Compressed Air Pressure | 0.5 – 0.7 MPa |
| Rewinding Speed | Max. 50 seconds / reel |
