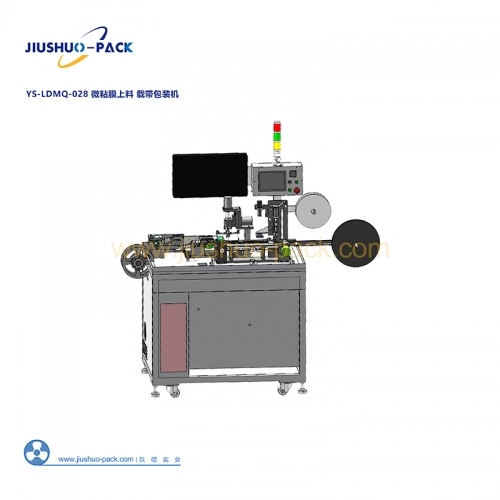

Micro-Adhesive Carrier Tape Packaging Machine – CCD Inspection for Flat Component Packaging
The Micro-Adhesive Carrier Tape Packaging Machine is designed for flat components using a micro-adhesive film feeding system, ensuring stable positioning and accurate placement during packaging.

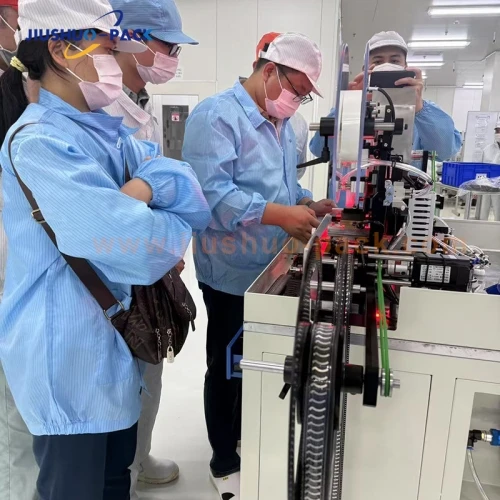

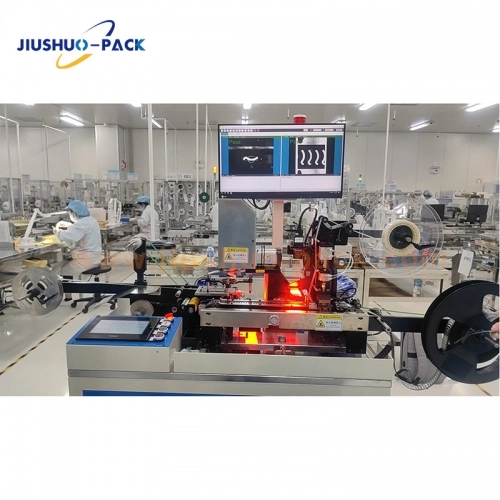

Equipped with a user-friendly HMI, servo-driven pick-and-place module, and dual CCD inspection (top and bottom), it delivers reliable packaging quality with high operational efficiency of 5,000–9,000 pcs/hour, making it suitable for precision SMT packaging applications.
The Micro-Adhesive Carrier Tape Packaging Machine is designed for flat components using a micro-adhesive film feeding method to ensure stable positioning and accurate placement throughout the packaging process. The system adopts an intuitive human–machine interface with an external touch screen, allowing fast learning, easy operation, and convenient machine setup.

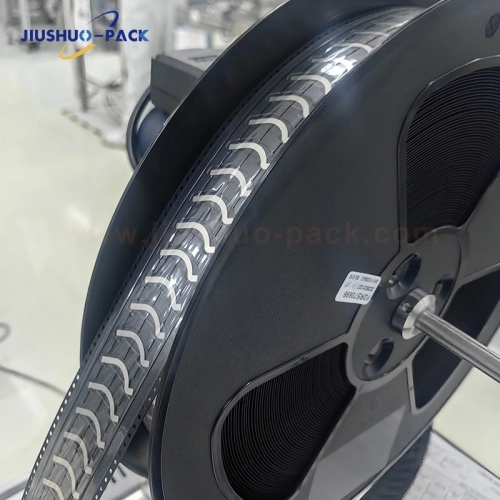

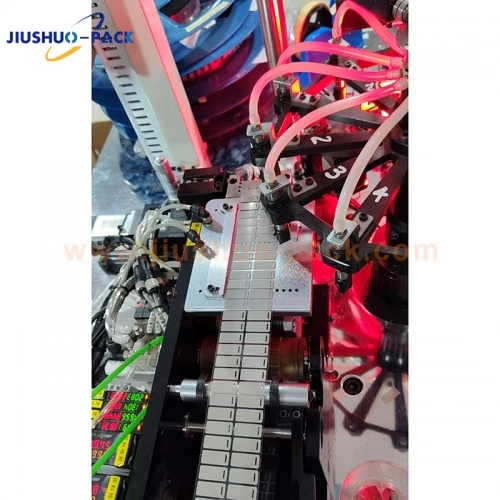

A servo-driven multi-station pick-and-place module combined with top and bottom CCD inspection enables precise component handling and real-time quality verification. Adjustable screw-driven mechanisms simplify mechanical setup and changeover. With a packaging speed of 5,000–9,000 pcs/hour (depending on product specifications), this machine is well suited for precision SMT carrier tape packaging requiring high stability and visual inspection reliability.
| Item | Specification |
|---|---|
| Applicable Products | Flat components |

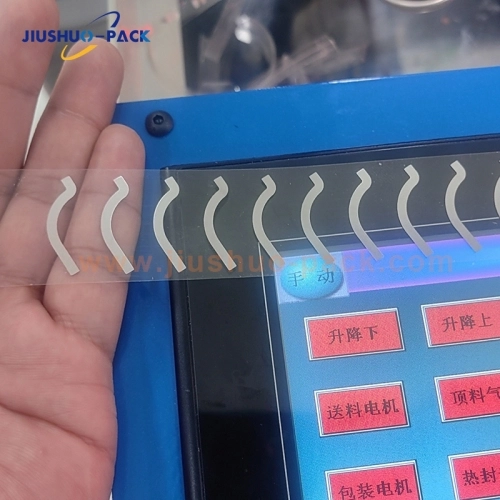

| Feeding Method | Micro-adhesive film feeding |
| Packaging Speed | 5,000 – 9,000 pcs/hour (depending on product) |
| Pick-and-Place Module | 4-station servo-driven pick-up module |
| Feeder Type | Single-lane feeder (Model: S2-L-V1.0) |
| Vision Inspection | Top and bottom CCD inspection modules |
| Operation Interface | HMI with external touch screen |
| Adjustment Method | Screw-driven mechanical adjustment |
| Power Supply | AC 220V |
| Working Air Pressure | 5 – 7 kg/cm² |
| Rated Power | 1.5 kW |
| Machine Dimensions | 1200 × 750 × 1700 mm (L × W × H) |
| Machine Weight | Approx. 300 kg |
