Fully Automatic Carrier Tape Packaging Machine – Vibratory Feeding, CCD Inspection & EIA-481A Compatible
The YX-Z660-3 Fully Automatic Carrier Tape Packaging Machine integrates vibrating disc feeding, robotic pick-and-place, and CCD vision inspection to deliver stable, high-efficiency SMT component packaging.
Designed for EIA-481A compliant carrier tape systems, it supports a wide range of electronic and hardware components, offering flexible parameter settings, reliable orientation detection, and consistent packaging quality for automated production lines.

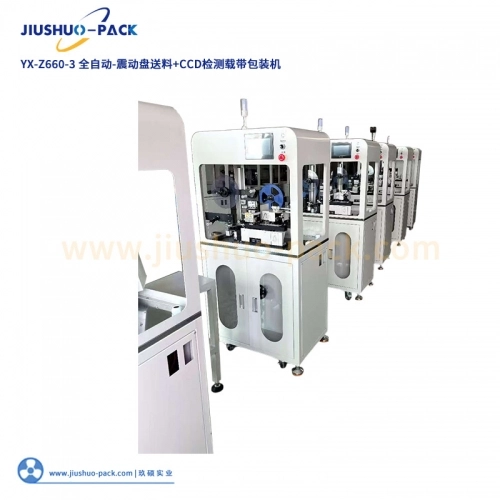

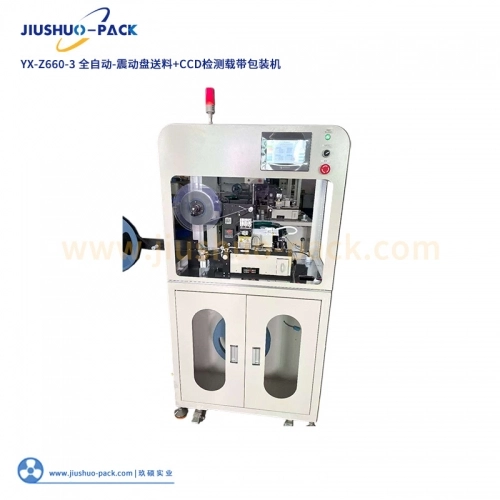

The YX-Z660-3 Fully Automatic Carrier Tape Packaging Machine is designed for high-efficiency SMT component packaging, integrating vibrating disc feeding, robotic pick-and-place, and CCD vision inspection into a single automated system. The vibrating disc feeding mechanism physically identifies product orientation, enabling stable and accurate automatic feeding.
Equipped with a single swing-arm robotic system, the machine ensures fast and precise placement, while the CCD detection module inspects component direction, detects missing or incorrect placements, and supports QR code recognition when required. The system offers strong compatibility and can be customized according to specific product dimensions and packaging requirements, with a typical customization lead time of 20–30 working days.
The YX-Z660-3 supports flexible parameter configuration, including empty pocket settings, packaging quantity, carrier tape and cover tape specifications, tape length, and remaining-material alarms. It is suitable for a wide range of components such as resistors, capacitors, fuses, connectors, crystal oscillators, silicon microphones, shielding covers, nickel sheets, stamped metal parts, touch switches, and various 3C SMT components.
| Item | Specification |
|---|---|
| Model | YX-Z660-3 |
| Machine Type | Fully Automatic Carrier Tape Packaging Machine |
| Overall Dimensions | Approx. 1500 × 700 × 1450 mm (L × W × H) |
| Machine Weight | Approx. 200 kg |
| Power Supply | Single-phase AC 220V, 50Hz |
| Rated Power | 4.6 kW |
| Air Pressure Requirement | 5.0 – 9.0 kg/cm² |
| Applicable Standard | EIA-481A Carrier Tape & Cover Tape |
| Carrier Tape Width | 12 mm – 56 mm |
| Maximum Pocket Depth | Up to 40 mm |
| Temperature Control | Single-head PID controller, 120°C – 200°C |
| Packaging Speed | 5,000 – 10,000 pcs/hour (component dependent) |
| Feeding System | Vibrating disc feeding with orientation identification |
| Placement System | Single swing-arm robotic pick-and-place |
| Vision Inspection | CCD inspection for orientation, missing parts, misplacement, QR code recognition |
| Counting Function | Internal pulse counting system |
| Sealing Method | Self-adhesive or hot-press sealing |
| Compatible Reels | 13″ / 15″ / 22″ / 27″ rubber or paper reels |
